P3 indoor led display panel full color screen board HD led display module smd 2121 led screen module
Quick details:
1. Energy saving;
2. High definition;
3. Low heat productivity;
4. Applicable for both indoor and outdoor
Description:
1)Available models: PH4mm, PH6mm, PH7.62mm, PH10mm, PH12mm, etc
2)Fast installation structure and hanging up, super thin cabinet and super light weight.
3)High luminance and large view angle
4)it can show very nice and real images, no matter in sunshine outdoor or strong light indoor
5)Low power consumption, long life span
Application and Market
1. Application
For Advertising, Events, Wedding Ceremony, TV Stations, Contest - TV Station, Contest, - School, TV Shows, Exhibitions, Indoor and outdoor architectures, Commercial Marketing Performances, Public Square etc.
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Technical Specification:
| INDOOR P3 SMD 3IN1 TECHNICAL PARAMETERS |
| Unit Module | Item | Parameter |
| Model Number | P3-32S |
| Module size | 192mm*192mm |
| Pixel pitch | 3mm |
| Pixels Density | 111111dots/SQM |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2121 |
| Pixel resolution | 64dots(W)*64 dots(H) |
| Max Power | 23W |
| Module thickness | 15mm() |
| 27mm() |
| Weight | 0.31kg |
| Drive type | Constant drive |
| Scan mode | 1/32scan |
| Port type | HUB75E |
| Brightness of white balance | ≥1200cd/SQM |
| LED | Dimension | 576mm*576mm |
| Cabinet | Monomer Module Number | 9pcs |
| | Power supply | 5V/60A*1pcs |
| | Pixel per cabinet | 192dots*192dots |
| | Best viewing distance | 3M~20M |
| | Best viewing angle | 160°(W) 120°(H) |
| | Temperature | storage:-35℃~+85℃ |
| | working:-20℃~+50℃ |
| | Relative humidity | 10%-95% |
| | Thickness | 85mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | <270W/SQM |
| Max.Power consumption | <680W/SQM |
| Current | <18mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP/WIN7/WIN10 |
| Control method | Synchronization |
| Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | >3840HZ |
| Grey scale/colors | 16384gray level/16.7M colors |
| MTBF | >9000hours |
| Power switch | Automatic switch |
| Display Mode | ≥800*600/1024*768 |
| bracket | Size | 384mm*192mm |
Supply Ability
Supply Ability: 1100 Square Meter/Square Meters per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
-
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |

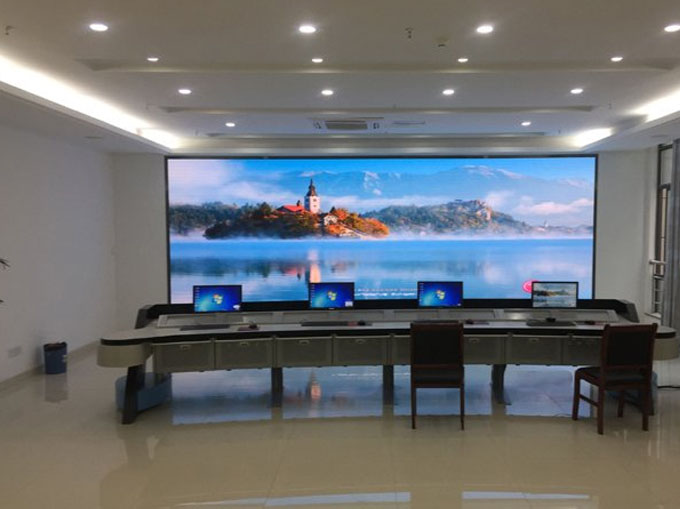

LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.
1. All the products purchased from ANWELL company carries one year free replacements and product life supports.
A: Two years warranty period, including one year free replacement warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.
3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.
4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.
5. Special offers available for preferred clients.
